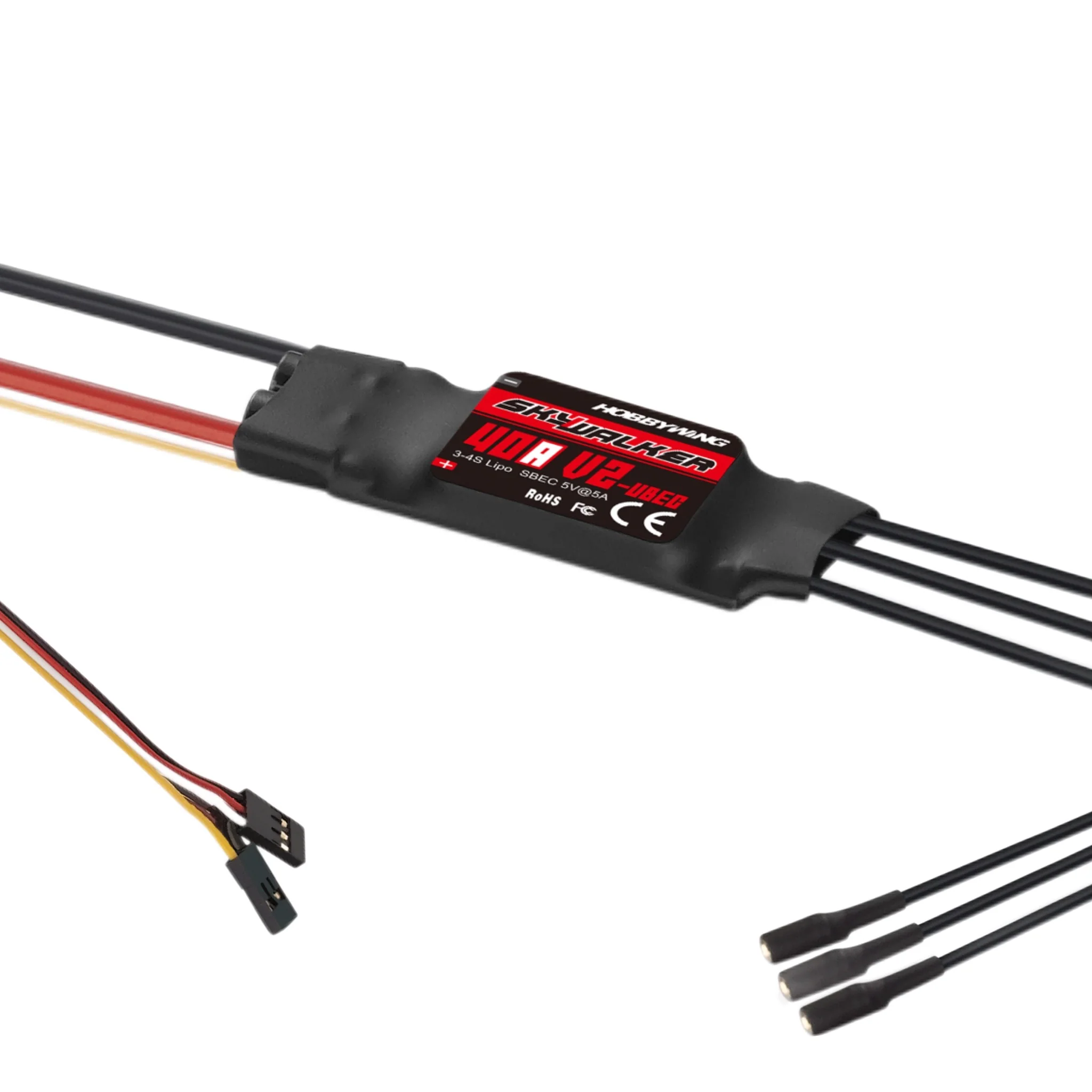

he Skywalker V2 Series takes Hobbywing’s most popular budget ESC and upgrades it with a high-performance 32-bit ARM M0 processor. This isn’t just a minor tweak; the new processor allows for much faster computation, resulting in a more linear throttle feel and support for high-RPM motors (up to 300,000 RPM for 2-pole motors).
Whether you are a beginner building your first trainer or an experienced pilot looking for a reliable replacement, the Skywalker 40A offers the perfect balance of “set-and-forget” simplicity and advanced programmable features.
Key Features:
-
DEO Technology: Driving Efficiency Optimization significantly improves throttle linearity and reduces the heat generated by the ESC, giving you more “punch” and longer battery life.
-
Advanced Braking Options: Beyond the standard brake, the V2 features Reverse Brake Mode, allowing you to shorten landing distances—perfect for flying in tight spaces.
-
Comprehensive Safety Suite: Includes start-up protection (motor won’t spin until throttle is zeroed), low-voltage cutoff, overheat protection, and signal loss failsafes.
-
Easy Programming: Easily calibrate your throttle or adjust settings using your transmitter sticks or the optional Hobbywing LED Program Card.
-
Built-in Linear BEC: Provides a stable 5V output to power your receiver and up to 4 standard servos without needing a separate battery.
Technical Specifications:
-
Continuous Current: 40A
-
Peak Current: 55A (up to 10 seconds)
-
Input Voltage: 2-3S LiPo | 5-9 cells NiMH
-
BEC Output: Linear Mode 5V @ 3A
-
Processor: 32-bit ARM M0
-
Input Wire: Red-14AWG-100mm / Black-14AWG-100mm
-
Output Wire: Black-14AWG-75mm (x3)
-
Weight: ~36g
-
Dimensions: 60 x 25 x 8 mm
